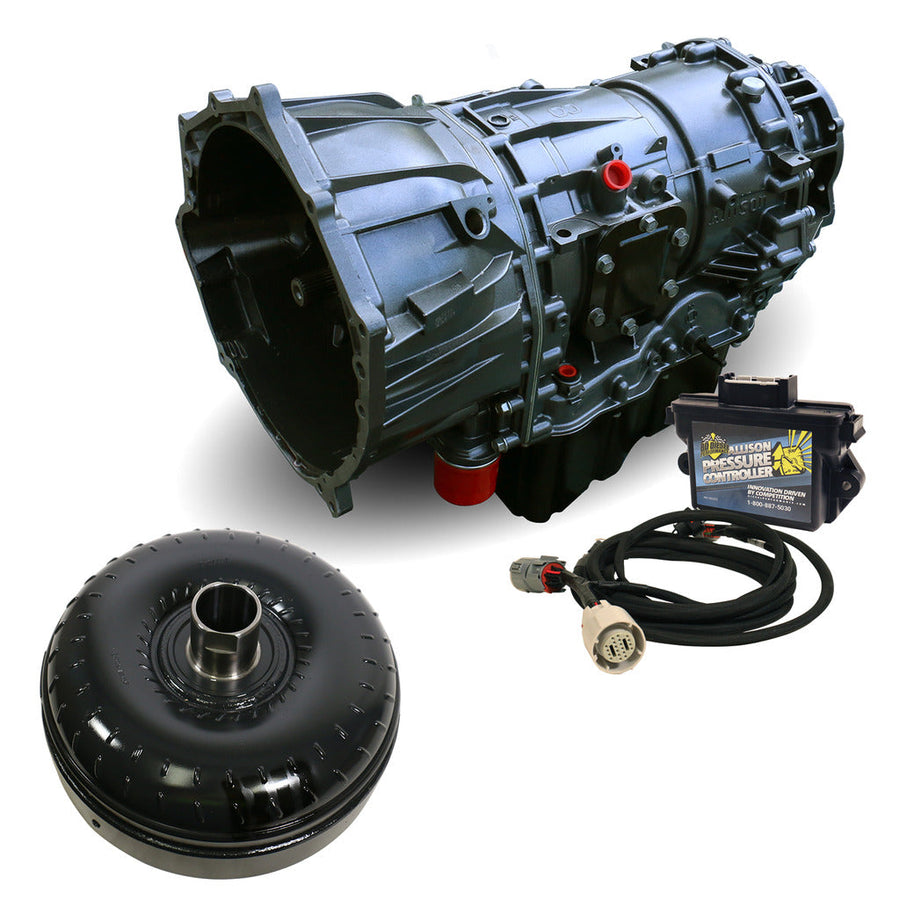

When you invest in a BD transmission and torque converter package, you receive a meticulously tested and matched set, ensuring optimal performance and reliability. Each transmission includes BD's exclusive Heavy Duty pan, providing additional fluid capacity. Whether for towing, street driving, or track use, when seeking a robust transmission capable of handling your diesel's power and torque requirements, BD stands out as the preferred choice.
Features
Transmission:
- Enhance drivetrain durability
- BD Aluminum HD deep transmission pan increases oil capacity by 3.5qt
- Includes BD Allison Pressure Box for up to 275PSI line pressure
- High energy GPZ(TM) frictions for improved performance
- Increased steel mass for better heat dissipation
- Higher clutch count for enhanced performance
- C1: 8 clutches (14% increase over stock)
- C2: 7 clutches (17% increase over stock)
- C3: 7 clutches (75% increase over stock)
- C4: 7 clutches (17% increase over stock)
- C5: 7 clutches (17% increase over stock)
- Dyno tested for reliability
- Billet Input Shaft for handling rapid throttle and high horsepower demands
Torque Converter:
- Triple Disc for robust performance
- Enhanced Stall designed for Street/Towing applications
- HD springs absorb shock during engagement
- Stamp forged 1-piece cover eliminates warpage from clutch heat
- Trapezoid teeth design with tighter tolerances and self-centering feature
- Thrust bearings (not plastic thrust washers) for improved reliability
- Riveted piston ensures alignment, eliminating vibration or embrittlement
- Cast stator design maximizes torque
- New sprag components for long-term durability
- Furnaced brazed turbine fins improve fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
- Utilizes a new double cage stator sprag for increased strength, reducing common stator failures with OE design.
Specifications
- Brand: BD Diesel
- Manufacturer's Part Number: 1064754SM
- Part Type: Automatic Transmissions
- Warranty: 36-Months, 150,000 Miles
