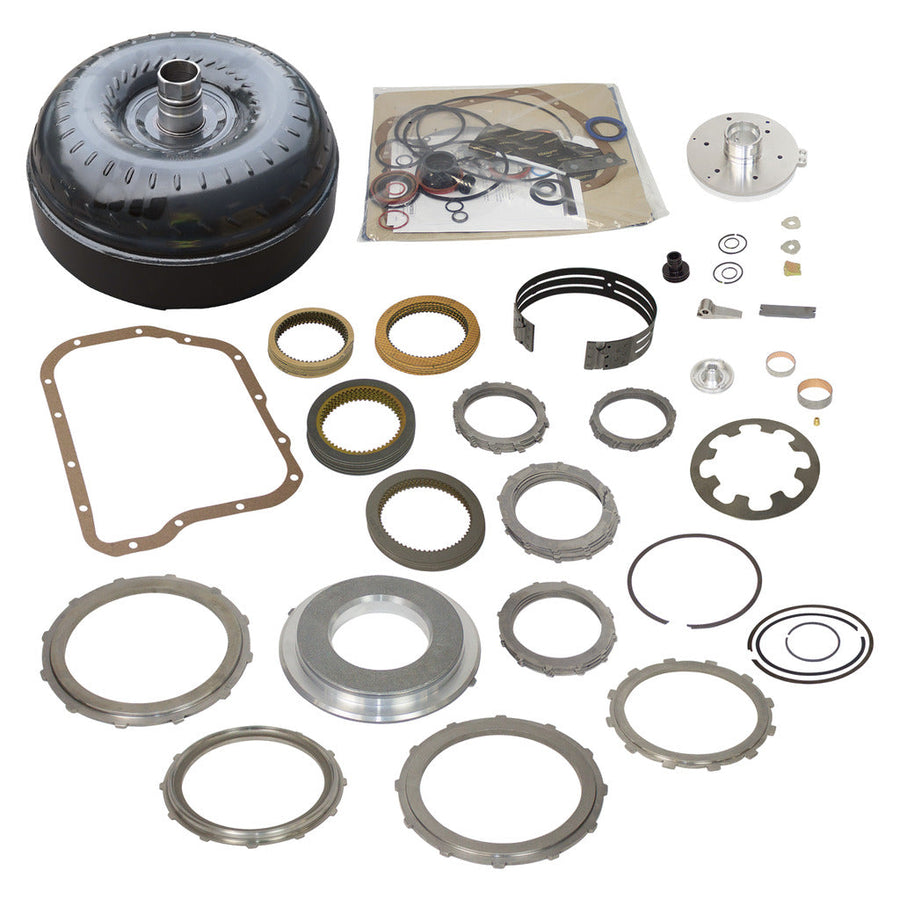

BD BUILD-IT KIT 47RE STAGE 4 TRANSMISSION & CONVERTER PACKAGE DODGE/RAM 5.9L CUMMINS 1994-2002

$2,525.00

  • Brand: BD
  • Availability: 1 In Stock
  • SKU: 1063004
  • Barcode: 990011410045

For those rebuilding their transmissions, BD offers specialized kits with components used in our performance transmissions. These kits cater to seasoned builders, ranging from basic rebuild parts to our advanced Stage 4 Master Kit. Included are gaskets and enhancements for various horsepower levels.BD's ProForce 3D multi-disc converter stands out for its quality. The in-house CNC machined billet cover prevents warping...

For those rebuilding their transmissions, BD offers specialized kits with components used in our performance transmissions. These kits cater to seasoned builders, ranging from basic rebuild parts to our advanced Stage 4 Master Kit. Included are gaskets and enhancements for various horsepower levels.

BD's ProForce 3D multi-disc converter stands out for its quality. The in-house CNC machined billet cover prevents warping and maintains balance. This design increases strength without altering the factory height. The clutch piston and damper assembly provide enhanced strength and reliable vibration damping. Featuring a self-centering trapezoid clutch teeth design, our clutch packs ensure proper alignment, reducing wear and extending the converter's life.

Features

    Build-It Kit:

    • Components match those in our performance transmissions.
    • Kits include basic rebuild parts and gaskets.
    • BD Pressure Plate Forward (Rr) Beveled Machined.
    • O/D Brake F&R Machined.
    • High Temp/Energy Raybestos Band.
    • Billet Band Anchor.
    • Billet Dual Ring Accumulator Piston.
    • Front Clutch Drum Bushing 0.85, Pump Bronze W/Dimples.
    • Friction: Front (Dir/Hi/Rev) Allomatic, O/D Allomatic, O/D Direct Borg Warner, Rear (Fwd) Borg Warner.
    • Shifter Bracket & Lever Kit - 4.2 Ratio.
    • Overhaul Gasket Kit.
    • Pressure Plates: Dir/Fwd (Frt) .145", Dir/Fwd (Frt) .185".
    • Machined BD Piston - Dir. Clutch (Frt).
    • Piston Retainer Kit.
    • Servo Cover Ring, Piston Cover.
    • Snap Rings: Direct Clutch .062, .074, .088.
    • Rear Clutch Piston Spring.
    • Steel: Fwd (Dir/Hi/Rev), O/D Brake, O/D Dir .525", Frt (Dir/Hi/Rev) Oversize.
    • Front Band Strut.
    • Int. Shaft Thrust Washer .052.

    Torque Converter:

    • Enhanced Stall for Street/Towing.
    • HD springs absorb engagement shock.
    • 1-piece cover eliminates warpage.
    • Increased clutch count.
    • Taller cover allows more frequent rebuilding.
    • Trapezoid teeth design.
    • Engineered tighter tolerances.
    • Self-centering trapezoid teeth reduce wear and chatter.
    • Thrust bearings, not plastic washers.
    • Riveted piston ensures alignment.
    • Cast stator design maximizes torque.
    • New sprag components for long-term durability.
    • Furnace-brazed turbine fins improve fluid coupling efficiency.
    • 12lbs lighter than competitors.

Specifications

  • Brand: BD Diesel
  • Manufacturer's Part Number: 1063004
  • Part Type: Automatic Transmission Rebuild Kits
  • Note: Billet input shaft strongly recommended for use with ProForce 3D Torque Converter
  • Warranty: Converter: 36-Months / Build It: 12-Month, Converter: 150,000-Miles / Build It: 12,000-Miles
