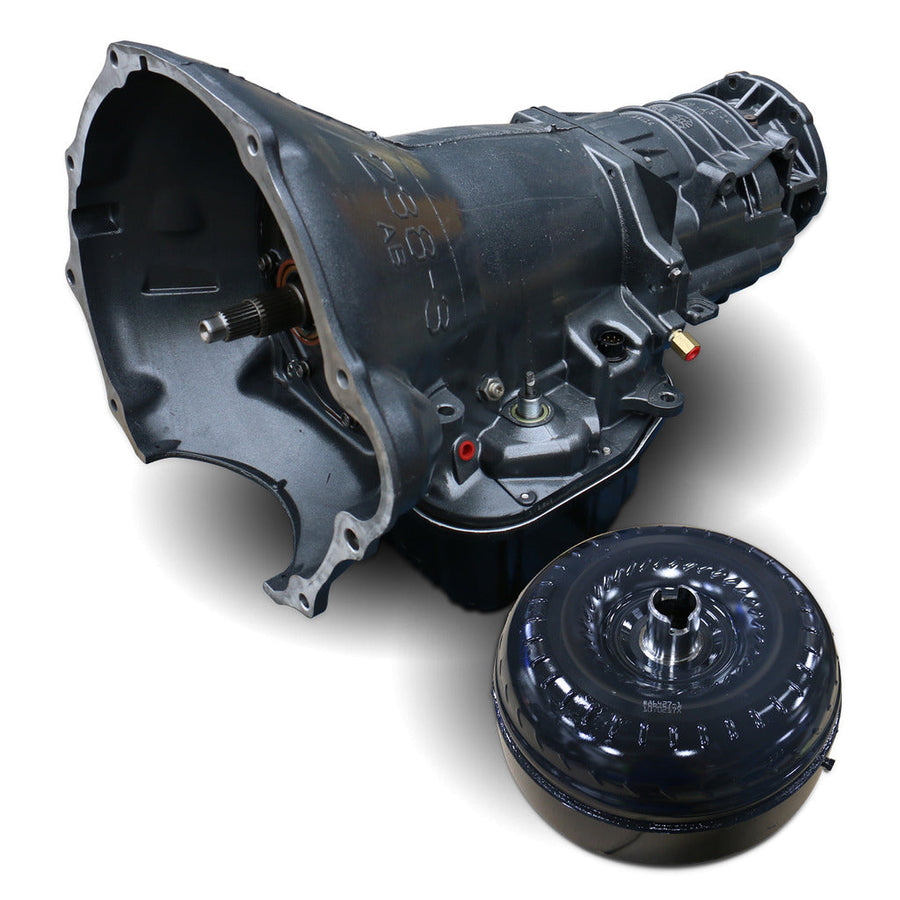

When investing in a BD transmission and torque converter package, you receive a meticulously tested, high-performance combination. The matched set undergoes dyno testing for optimal reliability and performance. Each transmission is equipped with BD's Heavy Duty pan, providing additional fluid capacity.
Whether you're towing, driving on the street, or hitting the track, BD offers a dependable transmission capable of withstanding the power and torque demands of your diesel engine. Choose BD for a transmission solution that ensures durability and consistent performance.
Features
Transmission:
- Upgraded Valvebody
- Upgraded governor solenoid with twice the burst pressure compared to stock
- Upgraded governor pressure transducer (47RE/48RE)
- Increased line pressure to 190-200psi
- Elimination of shuttle shifting problems
- Modified manual valve for lubrication in all positions
- Stock thrust bushings replaced with roller Torrington bearings
- Clutch Counts: DIRECT 6, FORWARD 5, OD 6, OD DIRECT 10
- High temp/energy Raybestos band
- Upgraded 48RE sunshell
- Billet band lever
- Billet barrel strut
- Billet Input Shaft to absorb the "snap" from rapid throttle and high horsepower
- Drilled intermediate shaft for enhanced lubrication
- BD rigid aluminum heavy-duty transmission pan with 2qt extra oil capacity
- Pan with heat-dissipating fins to keep temperature down
- Magnetic drain plug
- Increased durability of the drivetrain
- BD auxiliary full flow filter kit for extra protection
- Cooler line case saver in every transmission
- Every transmission tested on a dyno
- Not warranted for Race or Sled Pull use
Torque Converter:
- Triple Disc
- Enhanced Stall - Street/Towing applications
- HD springs absorb shock during engagement
- Stamp-forged 1-piece cover
- Elimination of warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact and decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator design maximizes torque
- New sprag components ensure long-term durability
- Furnace-brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Specifications
- Brand: BD Diesel
- Manufacturer's Part Number: 1064164BM
- Part Type: Automatic Transmissions
- Product Line: BD Diesel Performance Plus Automatic Transmissions
- Number of Gears: 4
- Bellhousing Bolt Pattern Manufacturer: Mopar
- Transmission Shift Pattern: Forward
- Valve Body Style: Automatic
- Remanufactured: Yes
- Torque Converter Included: Yes
- Trans-Brake Included: No
- Lockup Compatible: Yes
- Transmission Pan Style: Deep
- Transmission Pan Material: Aluminum
- Input Shaft Material: Steel
- Transmission Case Style: OEM
- Transmission Case Material: Aluminum
- Transmission Case Finish: Natural
- Transmission Shield Built In: No
- Flexplate Shield Built In: No
- Fluid Fill Location: Case
- Dipstick Included: No
- Quantity: Sold individually.
- Notes: Transmission has a billet input shaft and an auxiliary filter
- Warranty: 36-Months, 150,000 Miles
