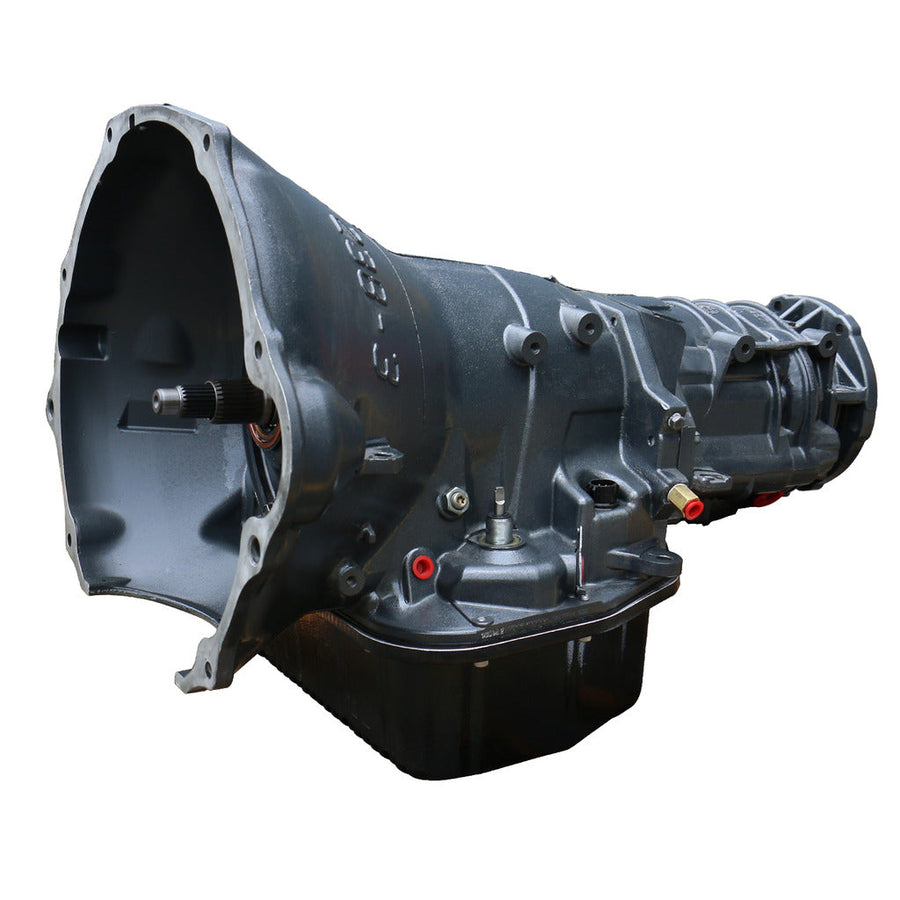

The factory transmission is engineered to manage the stock engine's power but falls short for increased performance. Boost your drivetrain's durability with a BD transmission, featuring a robust transmission pan.
Additionally, many packages are inclusive of our auxiliary transmission filter kit, providing extra protection. Upgrade your transmission to handle higher outputs, ensuring improved durability and reliability for enhanced performance.
Features
- Enhance drivetrain durability with the following upgrades:
- Thrust bushings replaced with roller Torrington bearings.
- Each transmission undergoes dyno testing for optimal performance.
- Upgraded Valvebody improves transmission functionality.
- Increased line pressure to 190-200psi eliminates shuttle shifting problems.
- Drilled intermediate shaft enhances lubrication.
- Modified manual valve ensures lubrication in all positions.
- Billet band strut and lever enhance transmission strength.
- Optimal clutch counts for OD, OD DIRECT, FORWARD, and DIRECT.
- High temp/energy Raybestos band for increased reliability.
- Upgraded governor pressure transducer (47RE/48RE) with double the burst pressure than stock.
- Upgraded governor solenoid for improved responsiveness.
- Cooler line case saver in every transmission enhances protection.

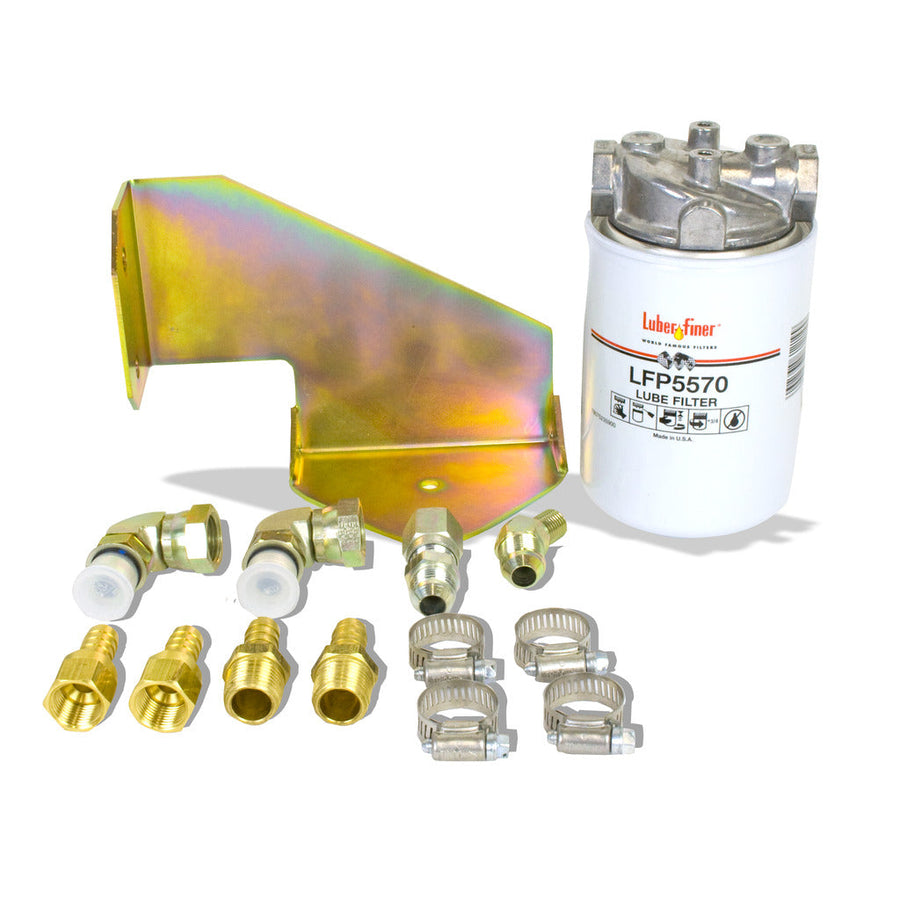

- BD auxiliary full flow filter kit provides extra filtration.
- Rigid aluminum heavy-duty transmission pan with heat-dissipating fins.
- Magnetic drain plug for easy maintenance.
- Pan adds 2qt extra oil capacity for improved cooling.
- Note: Not warranted for Race or Sled Pull use
Specifications
- Brand: BD Diesel
- Manufacturer's Part Number: 1064192F, 1064194F
- Part Type: Automatic Transmissions
- Warranty: 36-Months, 150,000 Miles
